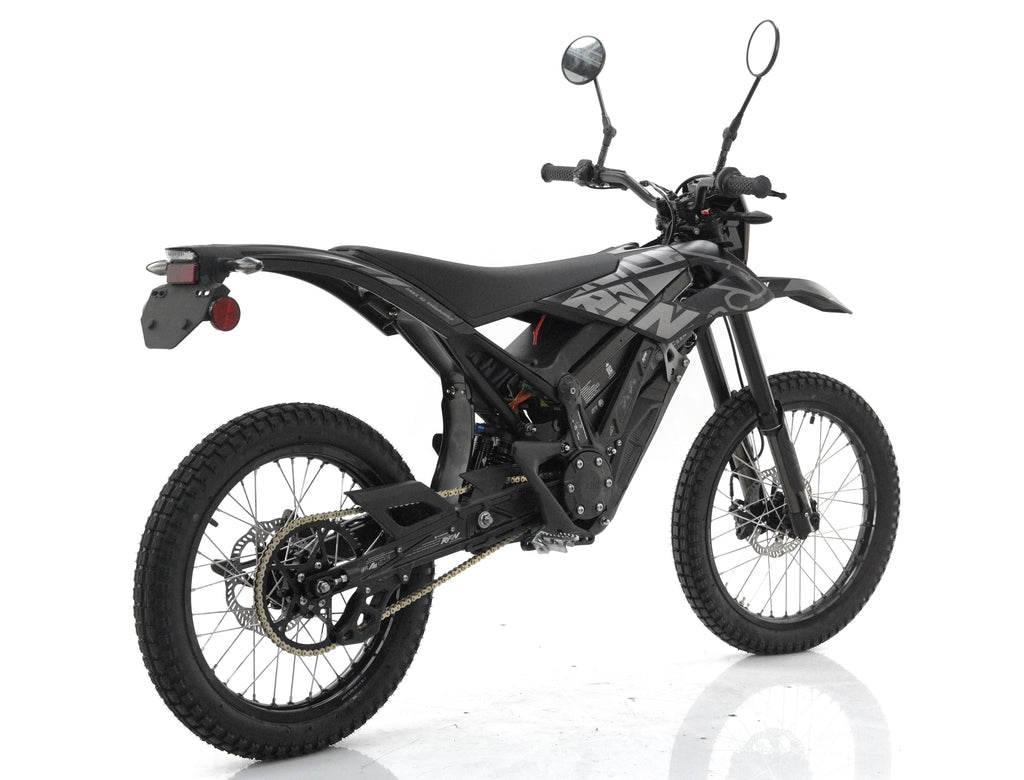

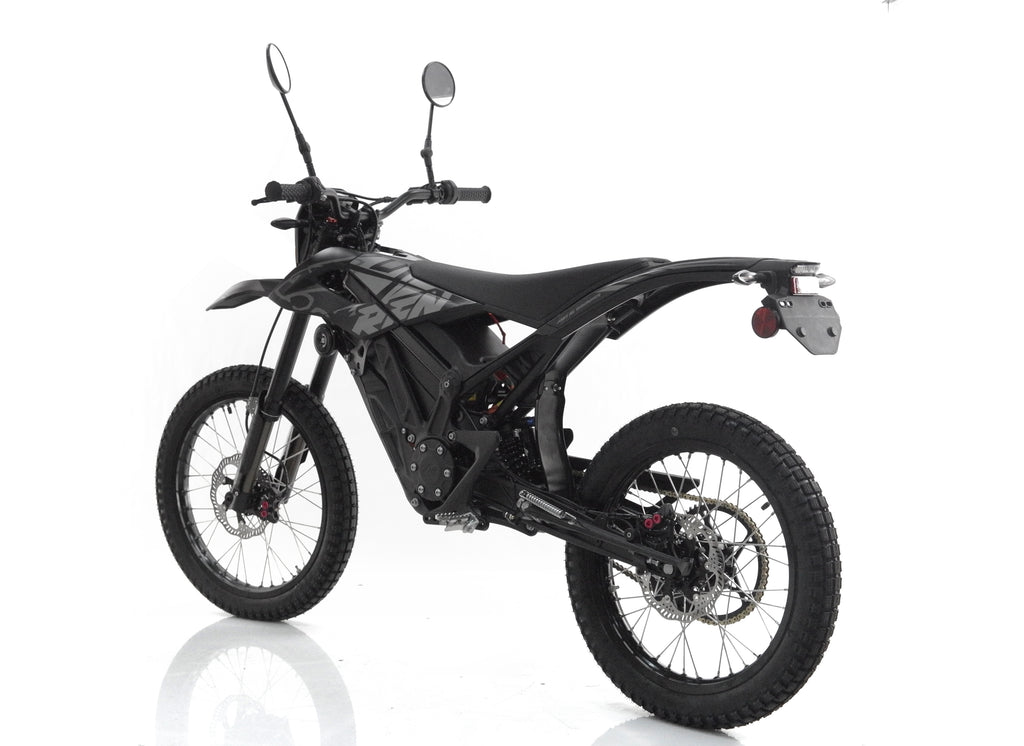

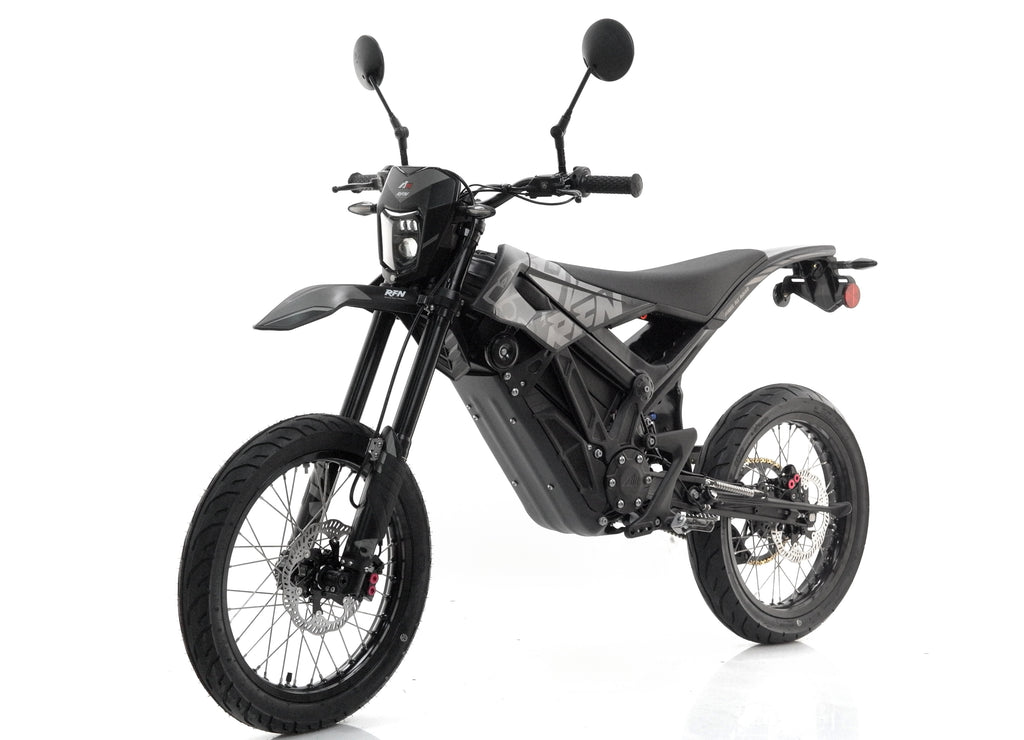

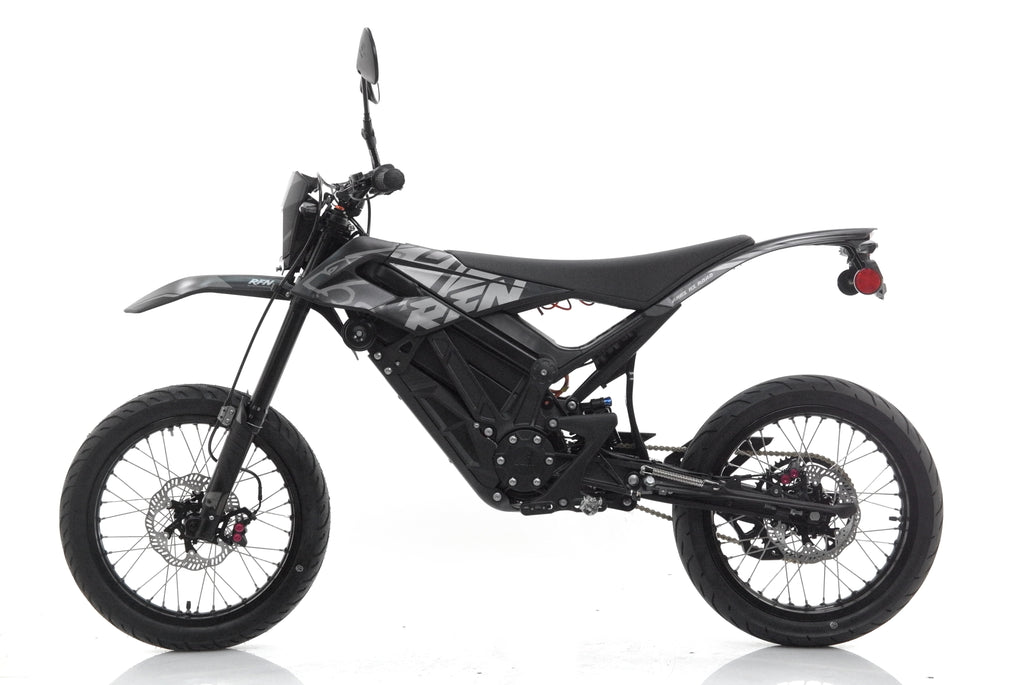

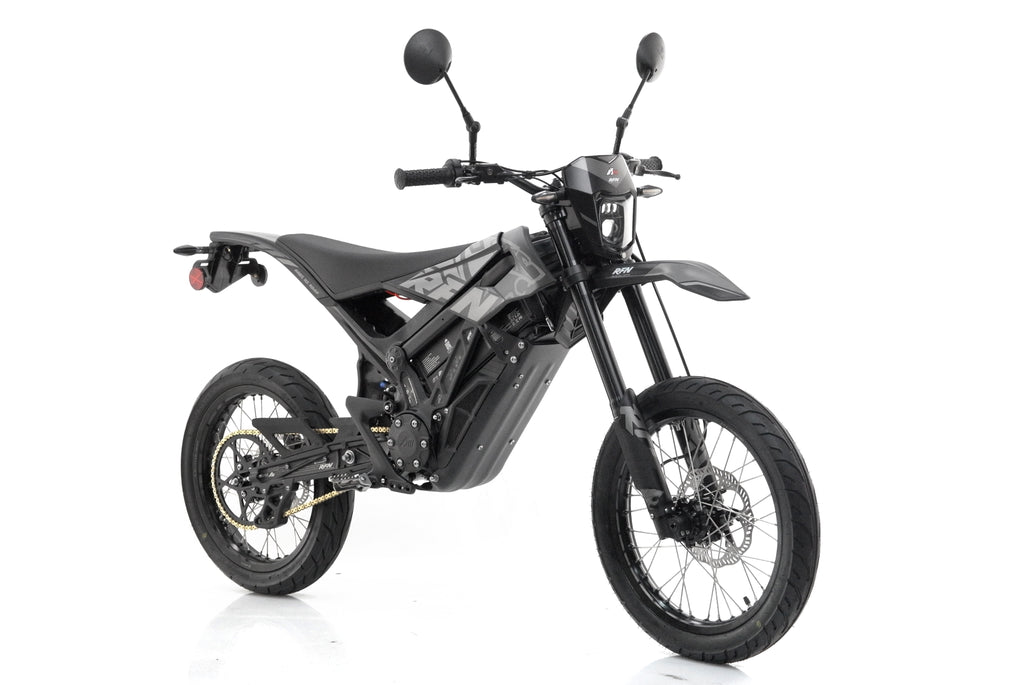

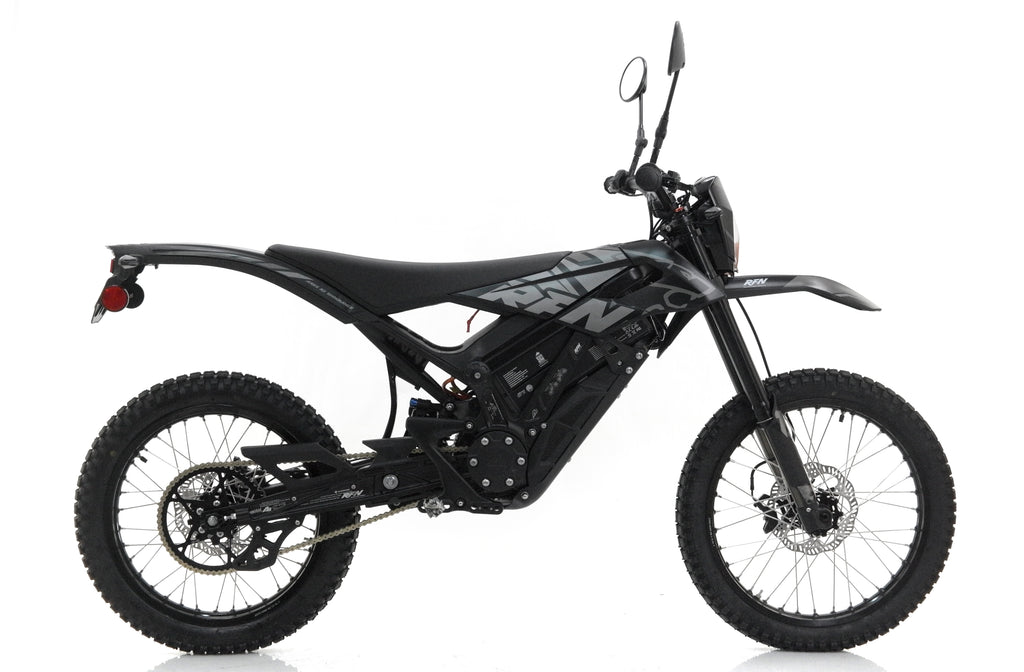

RFN RS Road Legal: Experience the power of RFN Rally Pro now available in a street-legal version. With the same impressive features and performance, but fully compliant with UK road regulations, you can explore both city streets and countryside trails without any emissions penalties. Discover the ultimate riding experience with RFN RS Road Legal Moped.
Specification
Battery - 74 V / 2590 Kwh, LG Premium 21700 lithium cells, removable, can be charged in bike or separately.
Brakes - Front and Rear 4-piston hydraulic disc, 210 mm
Charging - 2-3 h with Quickcharge Function
Controller - Sine wave, Best-in-class power density and state-of-the-art motor control algorithms.
Waterproof - IP67
Drivetrain
Electric motor - Air cooled Permanent Magnet Synchronous Motor, energy regeneration function, Direct drive, 420 chain with DX
Sprocket - 11-58T
Rated power - 4 kW
Peak power - 4 kW
Max Torque of motor - 46 N·m
Max Torque of rear wheel - 206 N.m
Dimensions
Fork angle - 24 °
Ground clearance - 340 mm
Offset - 15 mm in triple clamps, 45 mm in forks.
Seat height - 860 mm
Trail - 111 mm
Wheel base - 1330 mm
Bodywork
Fenders & Bodywork - PP/ABS plastic
Frame - 6082 aluminium extruded, forged, CNC machined and steel frame.
Front suspension - Upside Down, 200 mm travel, Fully adjustable
Handlebar - High rise 6061 aluminium, 760 mm length
Rear suspension - Mono-Shock, 74 mm travel, adjustable
Regulatory Certificate - CE EEC / EU,CCC / CN
Ride Modes
Mode 1 - The ultimate mode energy conservation exploration. Limited to 15 mph with 3.5 h battery range.
Mode 2 - Enduro or active trail riding. 1-2 h riding time.
Mode 3 - Track and race mode, maximal torque and speed, riding time up to 1 h.
Mode 4 - Reverse mode: Limited to 6 mph.
Speed & Range
Range - 112 mi (Test data Load: 75 kg, 12.5 mph uniform speed, ambient temperature: 25 °C, flat pavement, standard tyres, standard tyre pressure)
Top speed - 28 mph
Weight
Net weight of Battery - 15 kg
Net weight of whole bike (Including Battery) - 72 kg
Maximum load - 120 kg
Wheels & Tyres
Hubs - Forged and CNC aluminium RFN hubs with 20 mm axle.
Rims - F 19 "/ R 18 " (Motorcycle standard) re-inforced, triple chamber, 7050 aluminium.
Tyres - F KENDA 2.75-19 " / R 3.0-18 " lightweight off-road tyres for durability and minimum trail wear
Warranty
18 Months Parts & Labour (Subject to Service & Schedule)
