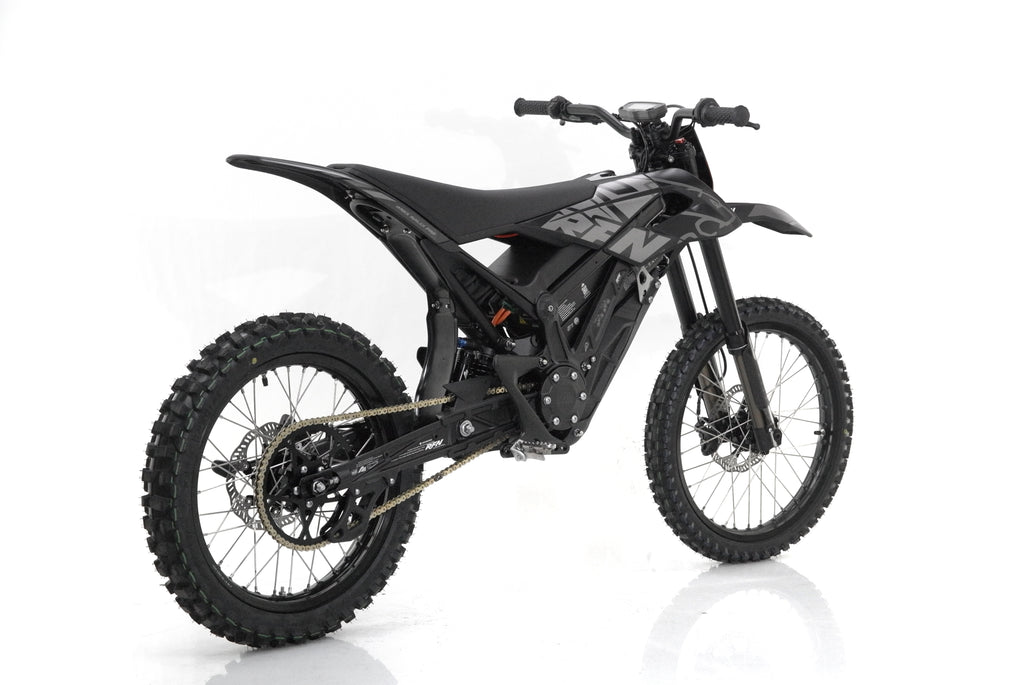

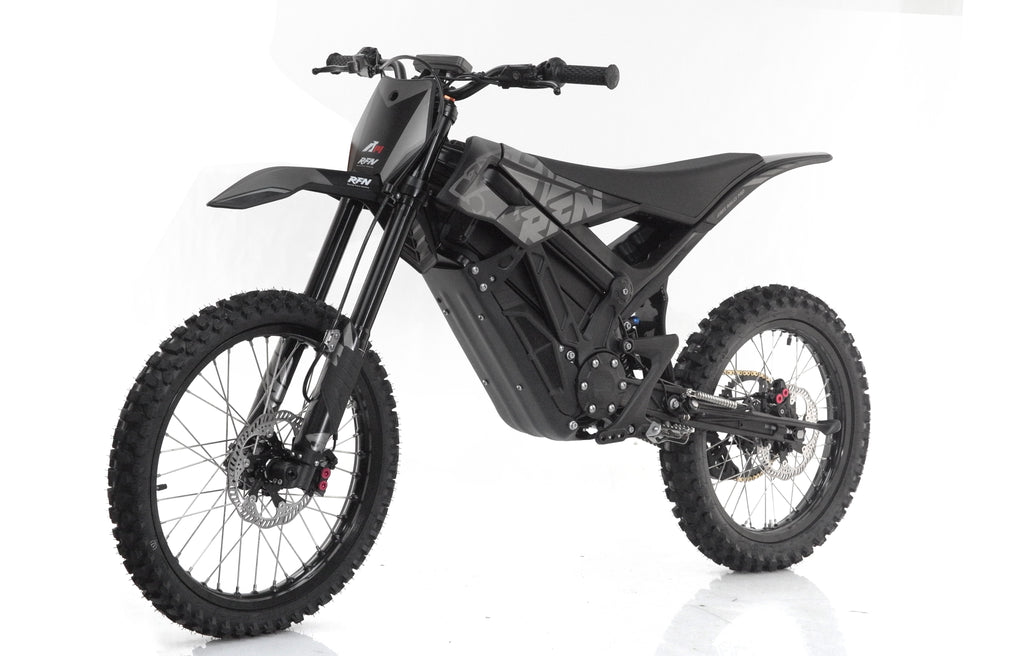

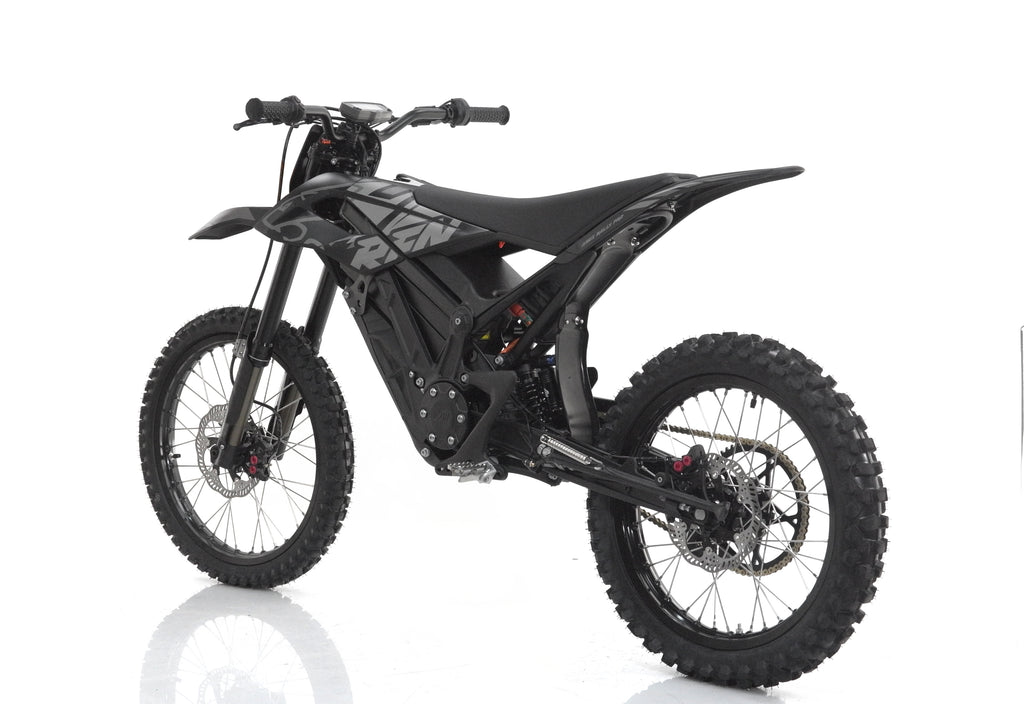

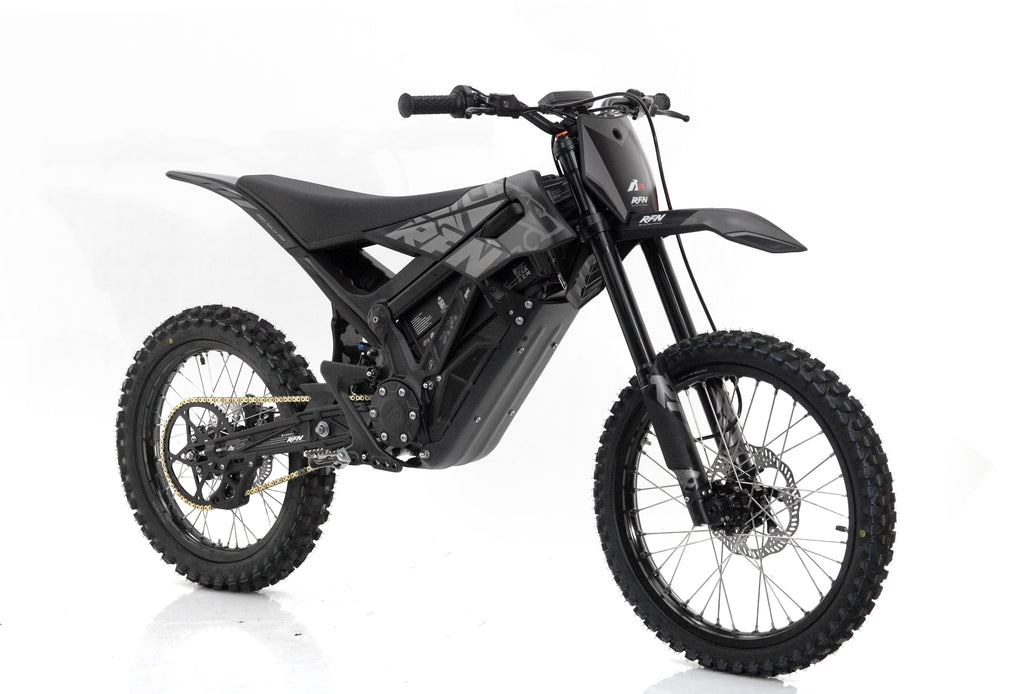

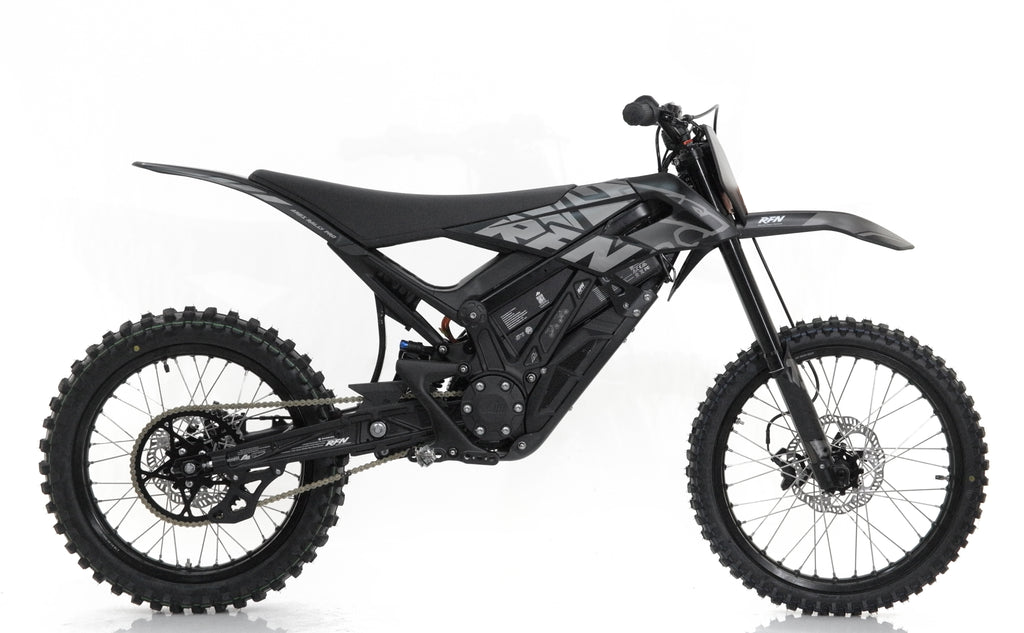

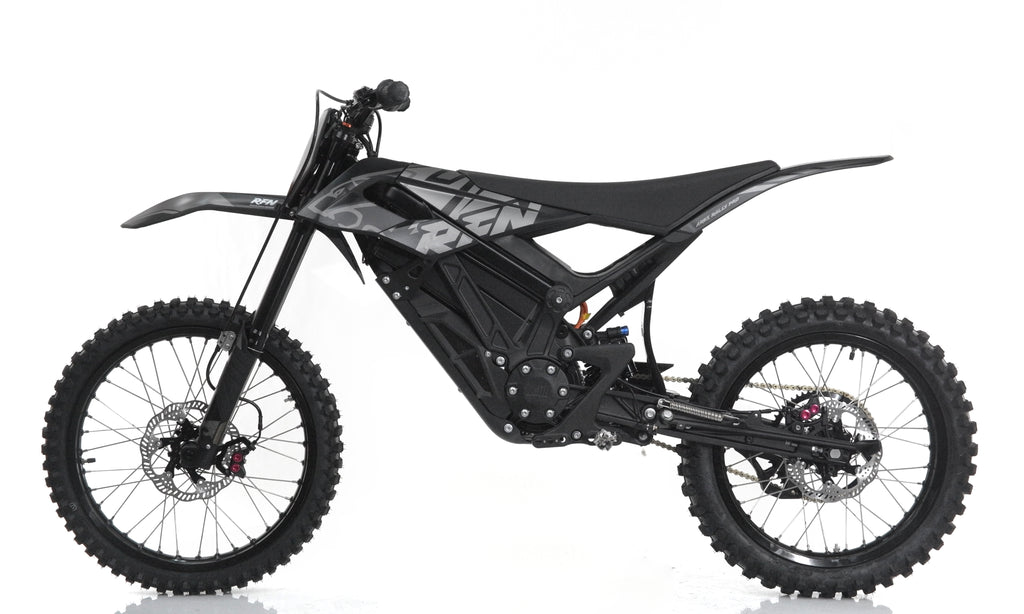

RFN Rally Pro: The ultimate off-road adventure bike. A powerful adventure bike with long-travel suspension and rally-inspired features, this bike is ready to tackle any terrain.
Specification
Battery - 74V / 2590 Kwh, LG Premium 21700 lithium cells, removable, can be charged in bike or separately.
Brakes - Front and Rear 4-piston hydraulic disc, 210 mm
Charging - 2-3 h with Quickcharge Function
Controller - Sine wave, Best-in-class power density and state-of-the-art motor control algorithms.
Waterproof - IP67
Drivetrain
Electric motor - Air cooled Permanent Magnet Synchronous Motor, energy regeneration function, Direct drive, 420 chain with DX
Sprocket - 13-58 T
Rated power - 5 kW
Peak power - 12.5 kW
Max Torque of motor - 58 N·m
Max Torque of rear wheel - 270 N.m
Dimensions
Fork angle - 24 °
Ground clearance - 340 mm
Offset - 15mm in triple clamps, 45 mm in forks.
Seat height - 860 mm
Trail - 111 mm
Wheel base - 1330 mm
Bodywork
Fenders & Bodywork - PP/ABS plastic
Frame - 6082 Aluminium extruded, forged, CNC machined and steel frame.
Front suspension - Upside Down, 200 mm travel, Fully adjustable
Handlebar - High rise 6061 aluminium, 760 mm length
Rear suspension - Mono-Shock, 74 mm travel, adjustable
Regulatory Certificate - CE
Ride Modes
Mode 1 - The ultimate mode energy conservation exploration. Limited to 15 mph with 3.5 h battery range.
Mode 2 - Enduro or active trail riding. 1-2 h riding time.
Mode 3 - Track and race mode, maximum torque and speed, riding time up to 1 h.
Mode 4 - Reverse mode: Limited to 6 mph.
Speed & Range
Range - 100 mi (Test data Load: 75 Kg, 12.5 mph uniform speed, ambient temperature: 25 °C, flat pavement, standard tyres, standard tyre pressure)
Top speed - 55 mph (depending on gearing and conditions)
Weight
Net weight of Battery - 15 kg
Net weight of whole bike (Including Battery) - 68 kg
Maximum load - 120 kg
Wheels & Tyres
Hubs - Forged and CNC aluminium RFN hubs with 20 mm axle.
Rims - F 19"/ R 18" (Motorcycle standard) re-inforced, triple chamber, 7050 aluminium.
Tyres - F CST CM721 70/100-19 off-road , R CST CM722 90/100-18 off-road
Warranty
18 Months Parts & Labour (Subject to Service & Schedule)
✅AVAILABLE NOW✅
